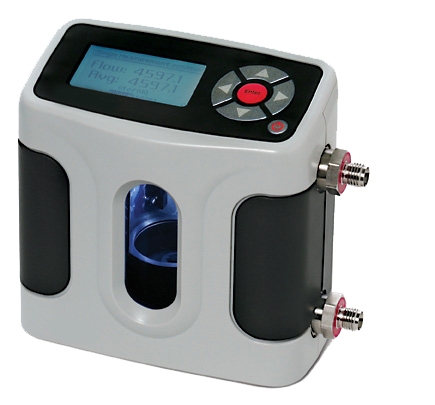

Digital Flowmeter 220L PTC

Digital Flowmeter 220L PTC

Highlights:

  • Digital Flowmeter
  • 5 mL/min to 500 mL/min
  • Volumetric
  • Pressure & Temperature compensated
  • NIST traceable
  • RoHS and CE Compliant
Request a Quote
Category:

Description

The 220L Digital Flowmeter with flow rates from 5 mL/min to 500 mL/min, allows users to verify gas flow rates, in the field or in the lab, to an accuracy of ±1% percent for readings standardized for temperature and pressure and ±0.75% in volumetric flow.

Unlike thermal mass flow meters, the 220L positive displacement technology provides immediate indication of actual volumetric gas flow rate, accurately and independently of gas type.  Integrated temperature and pressure sensors in the flow stream allow users to automatically standardize volumetric flow readings to standard conditions, for traceable verifications of mass flow devices.

A versatile, push-button flow meter, the 220L enables the user to accurately calibrate a variety of instruments while maintaining an ISO 17025-traceable audit trail.

Size 5.5″H x 6″W x 3″D
140 mm x 150 mm x 75 mm
Weight 29 oz. / 820 g
Flow Ranges  5 to 500 scc/min
Accuracy At gas pressure of 760 mmHg, gas temperature of 25°C with standard temperature set to 0°C.
Standardized
Volumetric		 ±1.0%
±0.75%
User-Selectable Measurement Units
Volumetric Flow mL/min, L/min, cc/min, cf/min
Standard Flow smL/min, sL/min, scc/min, scf/min
Pressure mmHg, PSI, kPa
Temperature ºC, ºF
Approximate Time per Reading 1-15 seconds
Gas Compatibility Use with non-corrosive, non-condensing, non-combustible gases, less than 70% humidity
Flow Modes Suction or Pressure
Measurement Cell Style Integrated
Temperature & Pressure Sensors In the flow stream
Press: 3.5 mmHg (typical), 7.0 mm (max)
Temp: 0.8 °C (typical) 1.3 °C (max)
Reading Styles Single (manual), Continuous or Burst, with averaging function user-selectable from 1 to 100 measurements
AC Adapter/Charger 12 DC, >250 ma, 2.5 mm, center positive
Battery System 6V rechargeable, sealed lead-acid, 6-8 hours typical operation
Battery Operational Time  3 hours backlight on, 8 hours backlight off
Pressure & Suction Fittings ¼” ID Swagelok® compression fittings
Warranty Instrument: 1 year, Battery: 6 months
Storage Temperature 0-70 °C
Ambient Humidity 0-70% – non-condensing
Operating Pressure  (Absolute) 15 PSI
Display Backlit graphical LCD
Data Port Serial RS-232 (for use with Optimizer software)
Data Cable 1 meter (220L Data Port to PC Serial Port)
Laboratory Accreditation Instruments are manufactured and calibrated by a company accredited to the ISO 17025, ANSI Z540, and NIST Handbook 150 standards. Traceability to the International System of Units (SI) and NIST is verified by accreditation to the ISO/IEC 17025 by NVLAP under Code 200661-0.
Instrument Certification RoHS and CE Compliant
